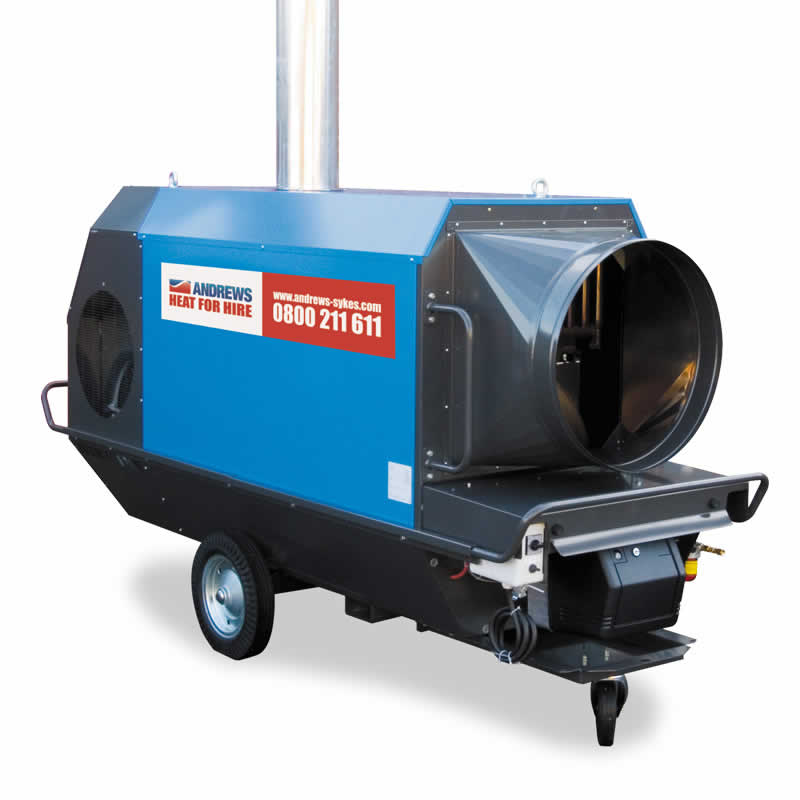

Aurora FH 185 Indirect Fired Oil Heaters
Click image to Zoom
Download Spec Sheet
The Aurora FH 185 is a revolutionary high performance indirect oil fired heater. It is highly fuel efficient, producing more than 92% heating efficiency and there fore more environmentally friendly than most other oil fired heaters. The Aurora IMA 185 is fully portable and easily transportable and compact without compromising on power.
Key Features
- 92%+ heating efficiency
- Safe and easy to use
- Large heat throw
- Robust construction
- Powerful heat distribution
- Quiet operation
- Fully automatic – with thermostat connection
- Economical
- Runs on low cost fuel
- Very reliable
- Totally portable
- Fume free
- Max duct lenght 50m
- Delivers large volumes of warm air
Environments
- Building Sites
- Garages, and spray booths
- Shops and retail showrooms
- Food prep areas
- Retail and car showrooms
- Sports halls and leisure centres
- Exhibition halls
- Churches
- Marquees
- Green houses
- Factories
- Agricultural Locations
- Warehouse
Specifications
- Duct size
- 600 mm
- Duct length (max)
- 40 metres
- Dimension
- 2,710 x 910 x 1,520 mm
- Weight
- 428 kg
- Generator size
- 27 kVA
- Noise level (max)
- 82 dBA @ 1 metre
- Plug type
- BS4343 4 pin 3 ph 32 A
- Power supply
- 415 V 3 ph +E 50 Hz Run 10.4 A
- Typical heated area
- 4,204 m
- Fuel type
- Gas Oil
- Fuel Consumption
- 18 ltrs/hr
- Flue
- 1 metre
- Control
- Manual, External controls available(24 V external control circuit)
