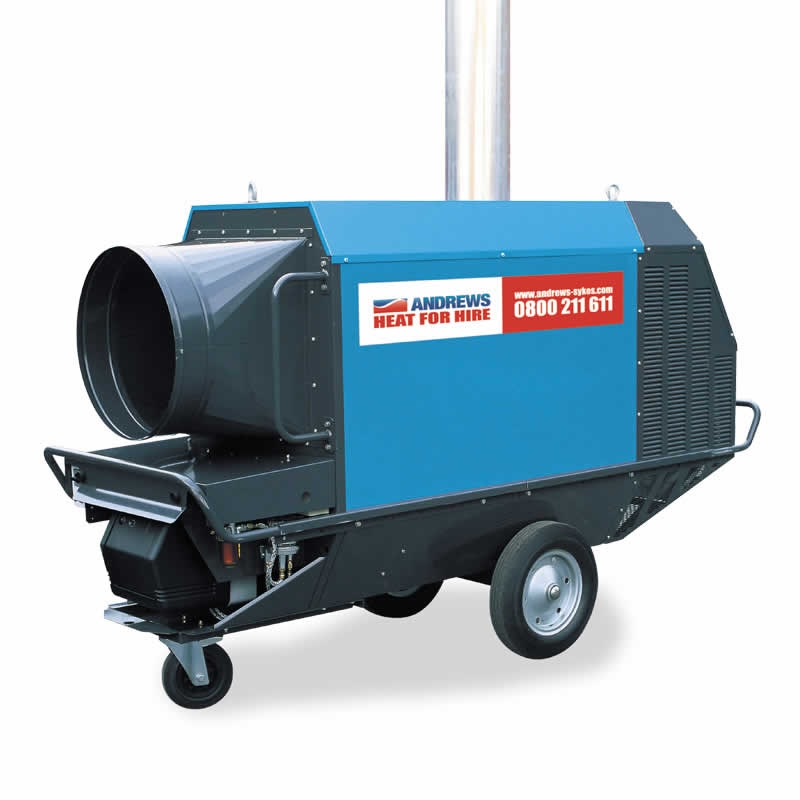

Aurora FH 111 DV Indirect Fired Oil Heaters
Click image to Zoom
Download Spec Sheet
The Aurora IMA 111 is a revolutionary high performance indirect oil fired heater. It is highly fuel efficient, producing more than 92% heating efficiency and there fore more environmentally friendly than most other oil fired heaters. The Aurora IMA 111 is fully portable and easily transportable and compact without compromising on power, and at only 80cm wide it can be used in usually inaccessible areas.
Key Features
- 92%+ heating efficiency
- Safe and easy to use
- Large heat throw
- Robust construction
- Powerful heat distribution
- Quiet operation
- Fully automatic – with thermostat connection
- Economical
- Runs on low cost fuel
- Very reliable
- Totally portable
- Fume free
- Only 800mm wide , giving easy access
- Max duct lenght 50m
- Delivers large volumes of warm air
Environments
- Building Sites
- Garages, and spray booths
- Shops and retail showrooms
- Food prep areas
- Retail and car showrooms
- Sports halls and leisure centres
- Exhibition halls
- Churches
- Marquees
- Green houses
- Factories
- Agricultural Locations
- Warehouses
Specifications
- Fuel type
- Gas Oil
- Duct size
- 450 mm
- Dimension
- 2,230 x 780 x 1,340 mm
- Duct length (max)
- 40 metres
- Weight
- 330 kg
- Noise level (max)
- 79 dBA @ 1 metre
- Plug type
- BS4343 230 V 16 A , BS4343 110 V 32 A
- Power supply
- 230/110 V 1 ph 50 Hz Run 9.2/16 A
- Typical heated area
- 2,440 m
- Fuel Consumption
- 10.9 ltrs/hr
- Control
- Manual, External controls available(24 V external control circuit)
