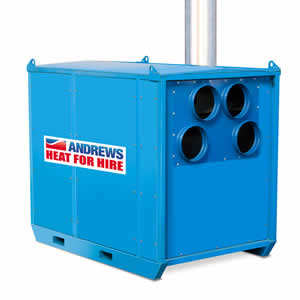

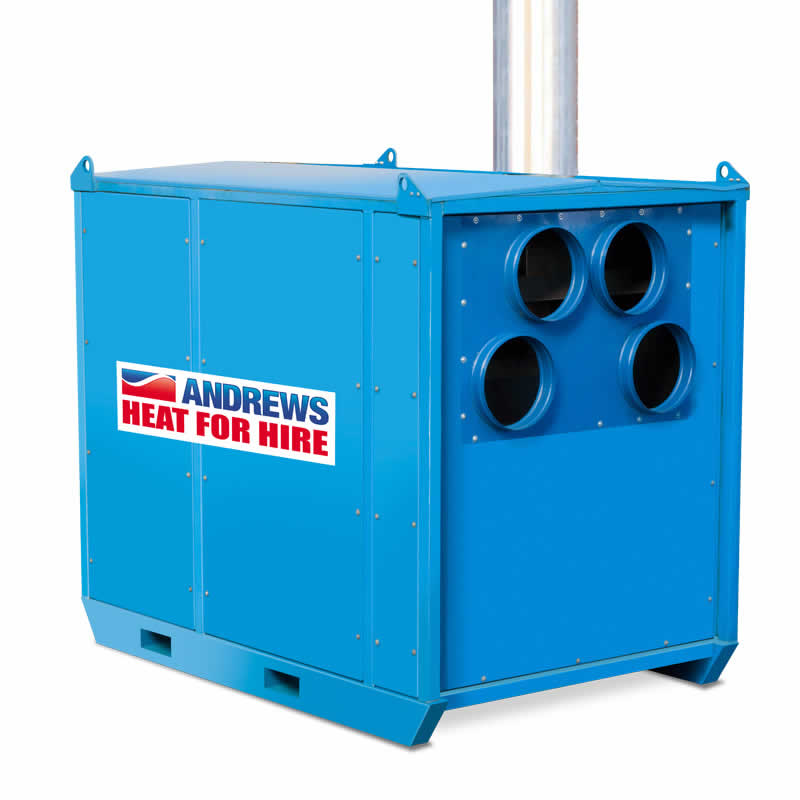

FH500 High Capacity, Heavy duty, Indirect Oil Fired Heater
Click image to Zoom
Download Spec Sheet
The FH500 Site heater has been specifically developed to deliver large volumes of clean, dry fume free heat over long distances. The FH500 is very Robust and will work, unattended for long periods of time in the most arduous conditions.
Key Features
- Safe and easy to use
- Totally weatherproof
- Quiet in operation
- Automatic operation
- Economical
- 48 hours heating on integral tank
- Stackable
- Runs on low cost fuel
- Very robust
- Very reliable
- Delivers huge volumes of warm fume free air
- LPG version available
Environments
- Construction sites
- Large warehouses
- Oil refineries
- Marquees and events
- Distribution centres
- Factories
- Oil and Gas platform construction
- Manufacturing and process
- Ship building
- Specialist flooring and painting
- Large engineering projects
- Building refurbishment and renovation
Specifications
- Fuel type
- Gas Oil/Kerosene (LPG version available)
- Fuel Consumption
- 12.8 kg/hr
- Duct size
- 4 x 300 mm
- Flue
- 1 metre x 203 mm
- Dimension
- 2,030 x 1,310 x 1,780 mm
- Noise level (max)
- 77.5 dBA @ 1 metre
- Weight
- Dry 830 kg Fuelled 1,250 kg
- Plug type
- BS4343 16 A 3 ph 5 pin
- Power supply
- 415 V 3 ph N+E 50 Hz Run 5.2 A
- Typical heated area
- 3,538 m
- Control
- Manual External Controls Available
