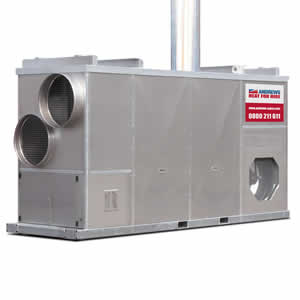

Aurora FH 4000 Indirect Fired Oil Heaters
The Aurora FH 4000 is one the most fuel efficient containerised oil-fired heaters in our fleet. It is 92%+ fuel efficient, which means it very environmentally friendly.The Aurora IMAC 4000 has a rugged weather resistant stainlees steel lockable casing, is very portable, stackable for storable, has a range of ducting outlets and adaptor plates and has crane hooks and fork lift slots.

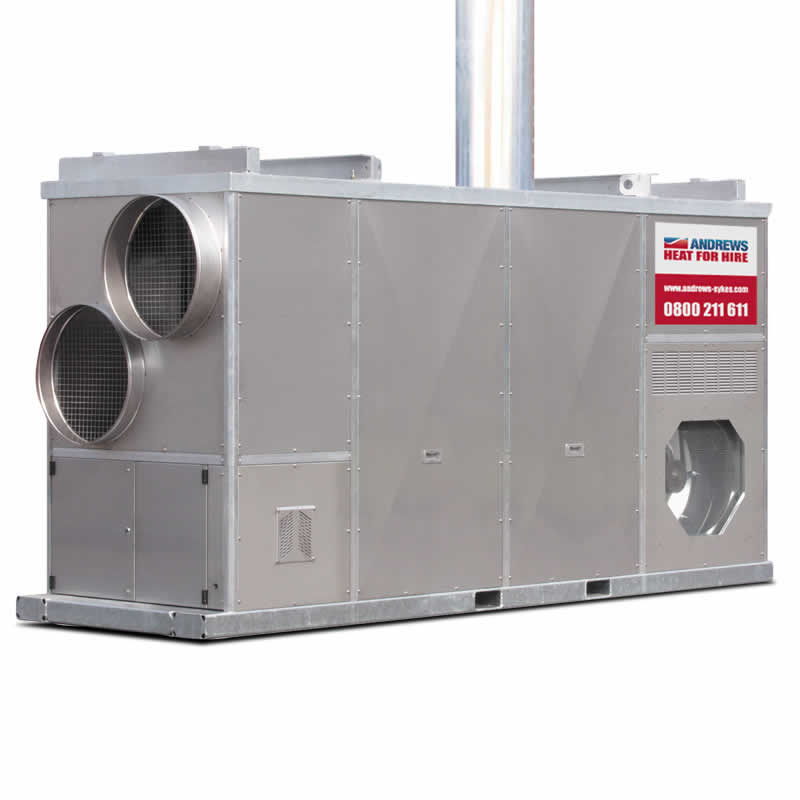

Click image to Zoom
Key Features
- 92%+ heating efficiency
- Robust construction
- Provides 100% clean dry fume free heat
- Quiet operation
- Very reliable
- Large heat throw
- Fume free
- Powerful heat distribution
- Economical
- Fully automatic – with thermostat connection
- Max duct lenght 50m
- Safe and easy to use
Environments
- Building and construction sites
- Agricultural Locations
- Shops and retail showrooms
- Warehouses
- Retail and car showrooms
- Sports halls and leisure centres
- Exhibition halls
- Factories
- Marquees
Specifications
- Power supply
- 415 V 3 ph +E 50 Hz Run 20 A
- Noise level (max)
- 76.5 dBA @ 1 metre
- Weight
- 1300 kg
- Dimension
- 3,850 x 1,200 x 2,015 mm
- Plug type
- BS4343 4 pin 3 ph 16 A
- Generator size
- 20 kVA
- Duct size
- 600 mm x 2
- Fuel Consumption
- 38 ltrs/hr
- Typical heated area
- 8,457 m
- Fuel type
- Gas Oil
- Flue
- 1 mtr x 250 mm
- Control
- Manual, External controls available(24 V external control circuit)
