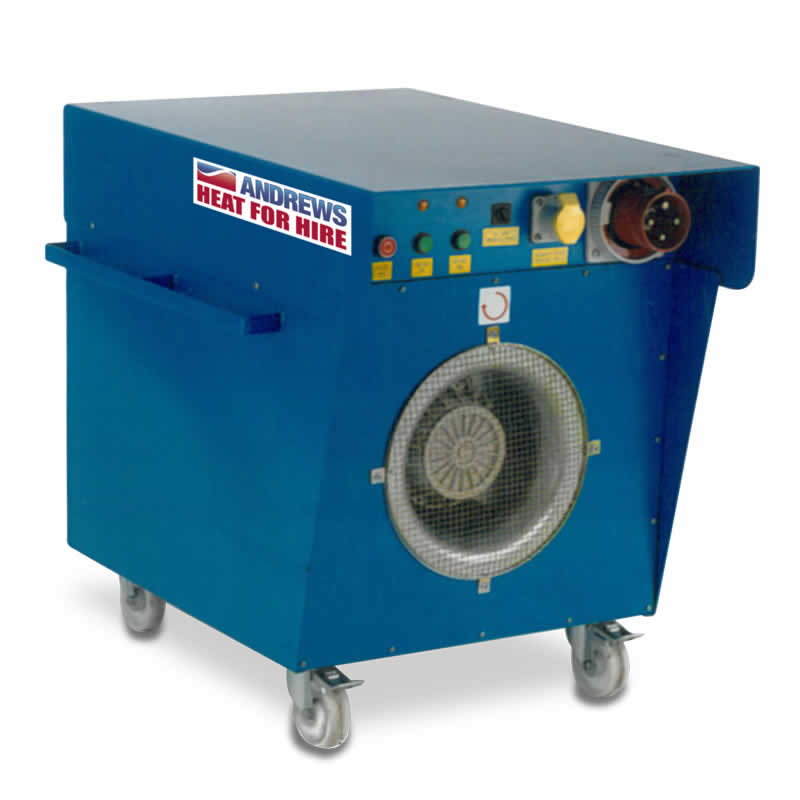

The ESH 20/40 Fan assisted heater is designed for applications that need a large amount of electrical heating. The unit is only available in a 3 phase 415 volt version. The high pressure, high capacity fan enables the ESH 20/40 to deliver 2,266 cfm of heat through ducting of up to 15 meters in length.
Key Features
Safe and easy to use- Fully automatic operation
- Double skin construction
- Quiet in operation
- Easy installation
- Economical
- Fully portable
- Very robust
- Delivers huge volumes of warm air
- Very reliable
Environments
- Offices
- Building sites
- Shops and Showrooms
- Marquees and tents
- Hotels
- Storerooms
- Garages
- Workshops
- Industrial units
- Clinics
- Classrooms
Specifications
- Duct size
- 450 mm
- Dimension
- 950 x 720 x 790 mm
- Typical heated area
- 966 m
- Power supply
- 415 V 3 ph + E 50 Hz Run 64 A
- Plug type
- BS4343 125 A 4 pin
- Generator size
- 60 kVA
- Noise level (max)
- 98.6 dBA @ 1 metre
- Weight
- 93 kg
- Control
- Manual (Plug in thermostat available)
