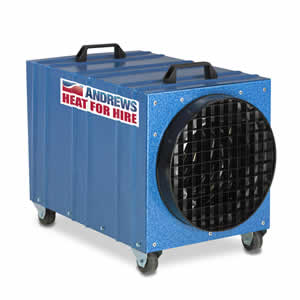

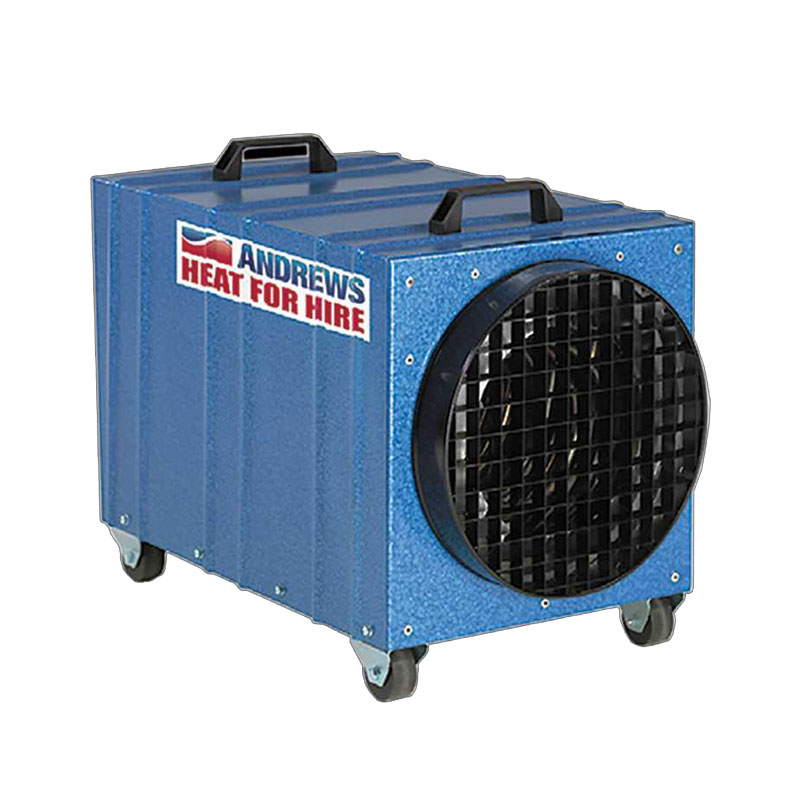

The DE 65 is a very efficient electric fan heater and is available as a 415 volt 3 phase version only. The unit has three settings, 6.5kw, 9.5kw or 13 kw and can either be hard wired or supplied with a short cable tail and suitable plug. For automatic operation, the DE 65 can be used in conjunction with the T32 control thermostat.
Key Features
- Safe and easy to use
- Quiet in operation
- Can reach and heat awkward places
- Economical
- Fully portable
- Very robust
- Fully automatic operation option
- Delivers huge volumes of warm air
Environments
- Offices
- Building sites
- Shops and Showrooms
- Marquees and tents
- Hotels
- Storerooms
- Garages
- Workshops
- Industrial units
- Ships
- Classrooms
- Switching stations
- Clinics
- Temporary accommodation
Specifications
- Heating duty (max)
- 13 kW 44,356 btu
- Typical heated area
- 314 m
- Generator size
- 16.5 kVA
- Power supply
- 415 V 3 ph +E 50 Hz Run 18.2 A (max)
- Plug type
- BS4343 3 ph 4 pin 32 A
- Noise level (max)
- 56.6 dBA @ 1 metre
- Weight
- 25 kg
- Dimension
- 600 x 360 x 450 mm
- Power consumption (max)
- 13 kW/hr
- Control
- Manual (in line automatic thermostat/contactor available)
