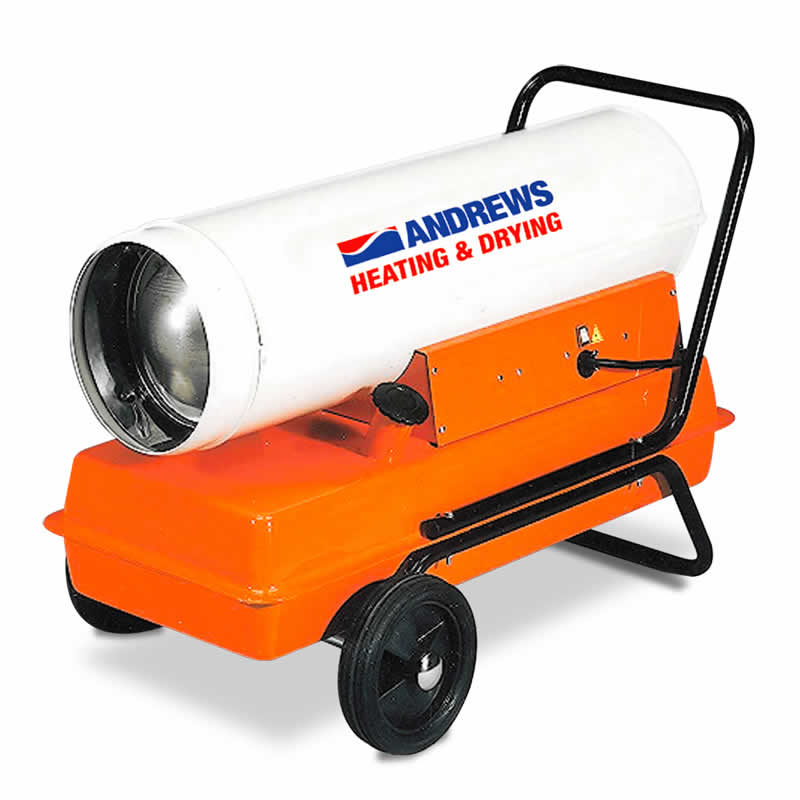

The Model 40 is a Direct Fired oil heater, designed for use in well-ventilated areas. The Model 40 can be fuelled by either Gas oil or Kerosene and available with either 230 or 110 volt electric supply. The Model 40 is very reliable and delivers large volumes of warm air quickly and safely.
Key Features
- Safe and easy to use
- Direct fired
- Economical
- Totally portable
- Very reliable
- Runs on low cost fuel
- Quiet in operation
- 12 hours heating on one 46 ltr tank
- Delivers large volumes of warm air
Environments
- Factories
- Garages
- Warehouses
- Farm buildings
- Loading bays
- Construction sites
- Sports Halls
Specifications
- Typical heated area
- 1050 m
- Power supply
- 230/110 V 1 ph 50 Hz Run 2/4.1 A
- Noise level (max)
- 79 dBA @ 1 metre
- Plug type
- BS1363 230v / BS4343 16A 110v
- Weight
- 37 kg
- Dimension
- 930 x 560 x 615 mm
- Fuel type
- Gas Oil or Kerosene
- Fuel Consumption
- 4.09 litres per hour
- Tank capacity
- 46 litres
- Hours run
- 11.2 hours per tank
- Control
- Automatic External Controls Available
