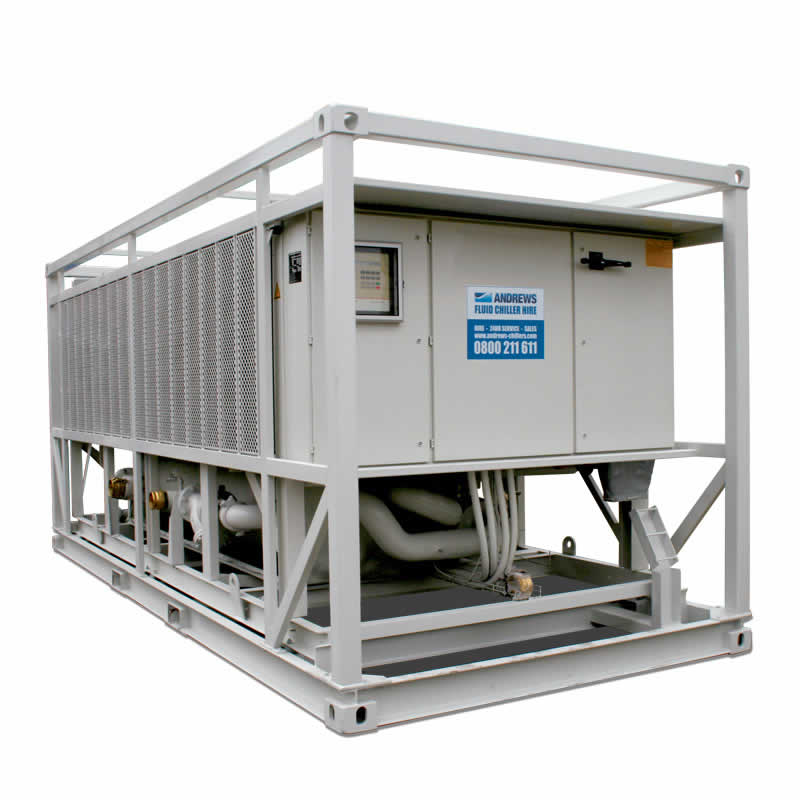

Andrews 750kW Fluid Chiller is capable of cooling fluid down to -12°C and can be easily connected to existing pipe work using flexible hoses. Andrews Chillers are ideal for breakdowns, disaster recovery, occupied refurbishment and events.
Key Features
- Environmentally friendly
- Quiet operation
- Quick release pipe adaptors
- Economical
- Easy installation
- For cooling large areas
- Connects to existing pipe work easily
Environments
- Air conditioning
- Product storage
- Process cooling
- Low temperature applications
- Temperature control
- Disaster recovery
- Scheduled chiller maintenance
- Events and corporate hospitality
Specifications
- Water connection
- 4" or 6 Bauer
- Generator size
- 550 kVA dependent on system resistance and pump size
- Average power consumption
- 218 kW/hr
- Dimension
- 6,038x 2,438 x 2,591 mm
- Weight
- 7,450 kg
- Noise level (max)
- 77 dBA @ 10 metres
- Plug type
- Hard wired
- Power supply
- 415 V 3 ph +E 50 Hz Run 576 A plus pump
- Nominal cooling duty
- 750 kW 2,559,000 btu
- Control
- Automatic programmer
