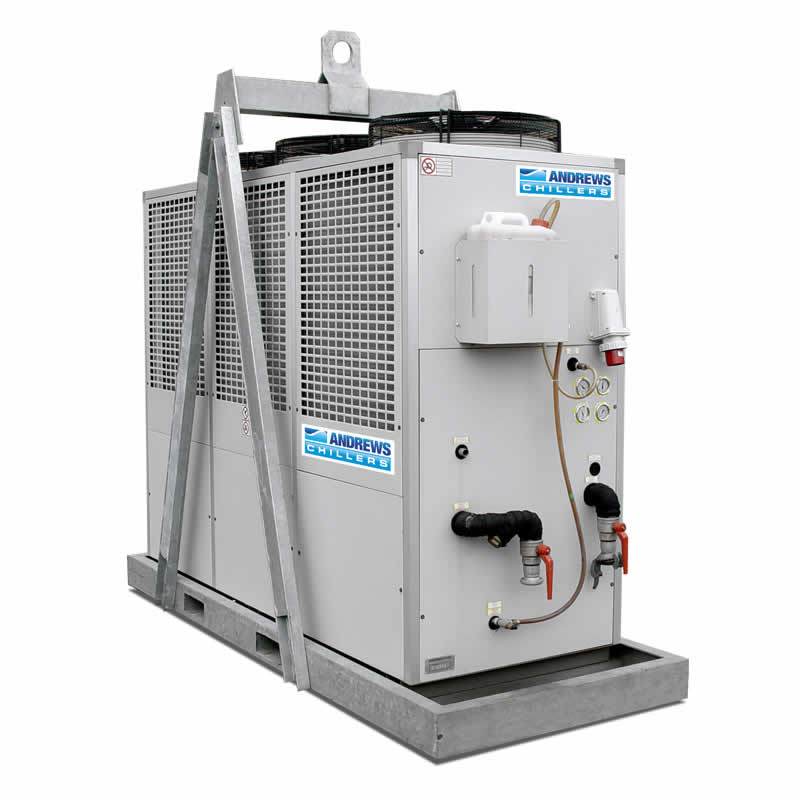

The 100kW fluid chiller is a robust powerful and easley portable fluid chiller. This highly efficient chiller and can be used for a multitude of applications where large volumes of cooled air are needed. Its quiet in operation and environmentally friendly - as are all Andrews Chillers. Also available with a Heat pump option, for all year round use. The 100 kW chiller is compatible with all Andrews air handling units and fan coils.
Key Features
- Environmentally friendly
- Quiet operation
- Quick release pipe adaptors
- Economical
- Easy installation
- For cooling large areas
- Connects to existing pipe work easily
Environments
- Air conditioning
- Product storage
- Process cooling
- Low temperature applications
- Temperature control
- Disaster recovery
- Scheduled chiller maintenance
- Events and corporate hospitality
Specifications
- Water connection
- 2 Bauer
- Generator size
- 75 kVA
- Average power consumption
- 31.6 kW/hr
- Dimension
- 3,100 x 1,330 x 2,775 mm
- Weight
- 1,790 kg
- Power supply
- 415 V 3ph +E 50 Hz Run 70 A/hr
- Plug type
- BS4343 63 A 5 pin
- Noise level (max)
- 58.5 dBA @ 10 metres
- Nominal heating duty (HP version)
- 100 kW 341,200 btu
- Nominal cooling duty
- 100 kW 341,200 btu
- Control
- Automatic programmer
