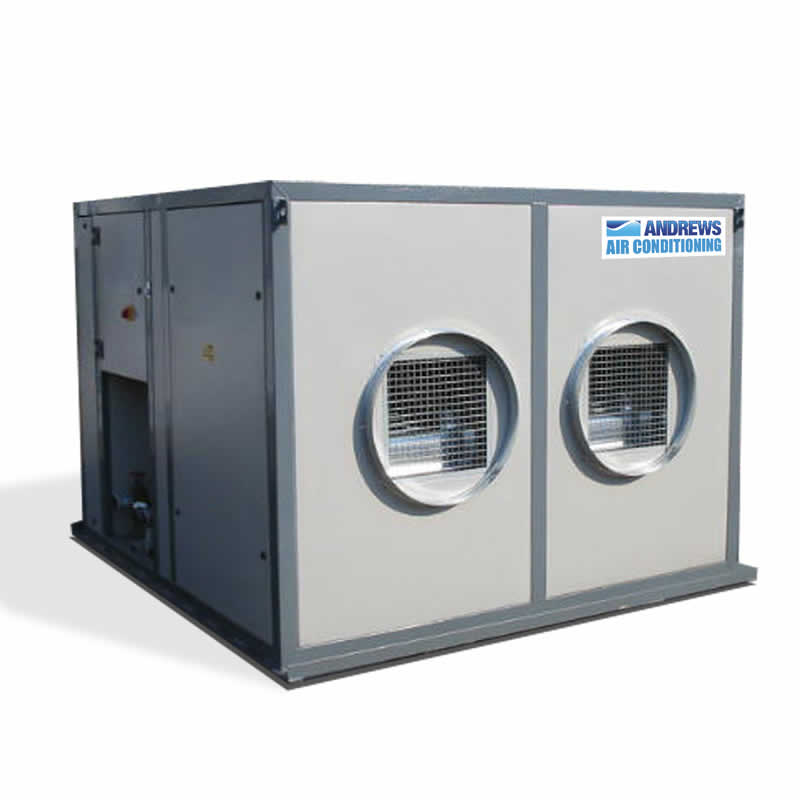

32 kW Low Temperature Air Handling unit
Click image to Zoom
Download Spec Sheet
32 kW Air Handling unit can connect to your existing cold water circuit or to an Andrews Packaged water chiller. These units are designed to achieve air off as low as +5C
Key Features
- Safe and easy to use
- Economical
- Fully portable
- Very reliable
- Robust construction
- Quiet operation
- Fully automatic operation
Environments
- Food preparation areas
- Petrochemical
- Cold storage applications
- Manufacturing
- Food and Beverages
Specifications
- Duct size
- 2 x 600 mm
- Dimension
- 2,260 x 1,980 x 1,700 mm
- Duct length (max)
- 50 metres
- Weight
- 1,150 kg
- Plug type
- BS4343 5 Pin 32 A
- Noise level (max)
- 82 dBA @ 1 metre
- Power supply
- 415 V 3 ph 50 Hz N+E Run 25.2 A/hr
