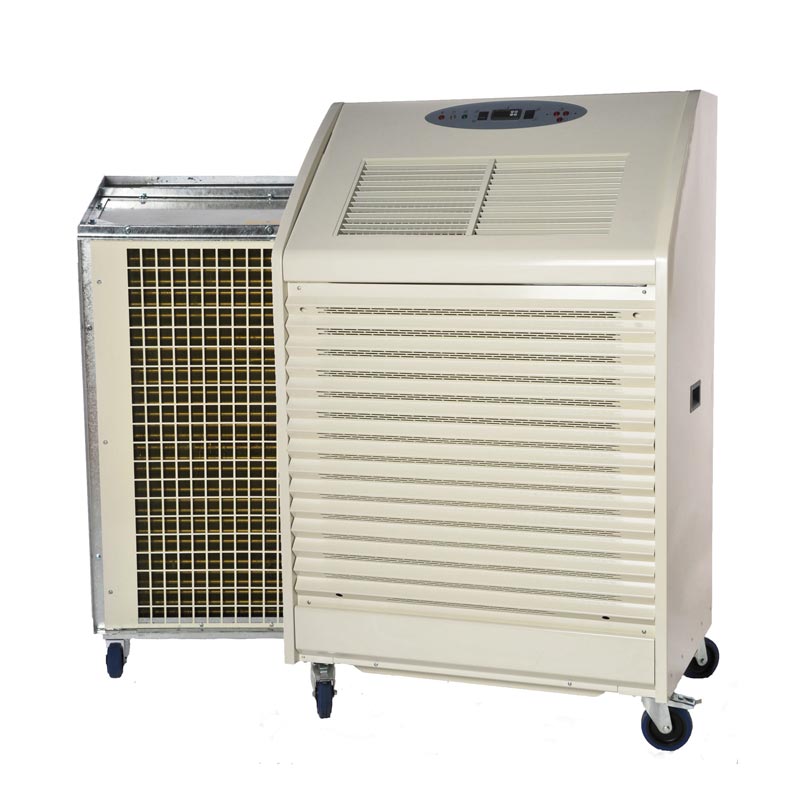

PAC 60 Series 3 portable air conditioner (17kW)
The PAC60 Series 3 is one of our larger and more powerful stylish water - cooled 'Split' portable air conditioners. Split means there are two parts to the system, the room unit and the external condenser unit.
Click image to Zoom
Key Features
- Market leading technology
- 30m lines for versatility of location
- Very high capacity unit - 17kw from a 3-phase 32amp power supply
- Improved water couplings for fast installation
- Three speed fan for high capacity air flows
- Lower temperature capability - down to as low as 10°c
- Innovative spigot plate for ducting to remote areas
- Most recent product to be added to the Andrews range
Environments
- Data rooms
- Storerooms
- Server rooms
- Temporary accommodation
- Large or medium sized offices
- Large sized workshops
- Open plan areas
- Marquees
- Hotels
- Hospitality units
- Restaurants
Specifications
- Typical cooled area
- 410 m
- Power supply
- 415v - 3ph-n-e, 32A 5 pin
- Indoor noise level (max)
- 65dbA@ 3m
- Outdoor noise level (max)
- 70dba@ 3m
- Indoor weight
- 230kg
- Outdoor weight
- 113kg
- Indoor dimensions
- 640 x 1,000 x 1,610 mm
- Outdoor dimensions
- 605 x 820 x 1085 mm
- PAC line length
- 15m (Max 30m)
- Average power consumption
- 5.5kW
- Control
- Digital thermostat
