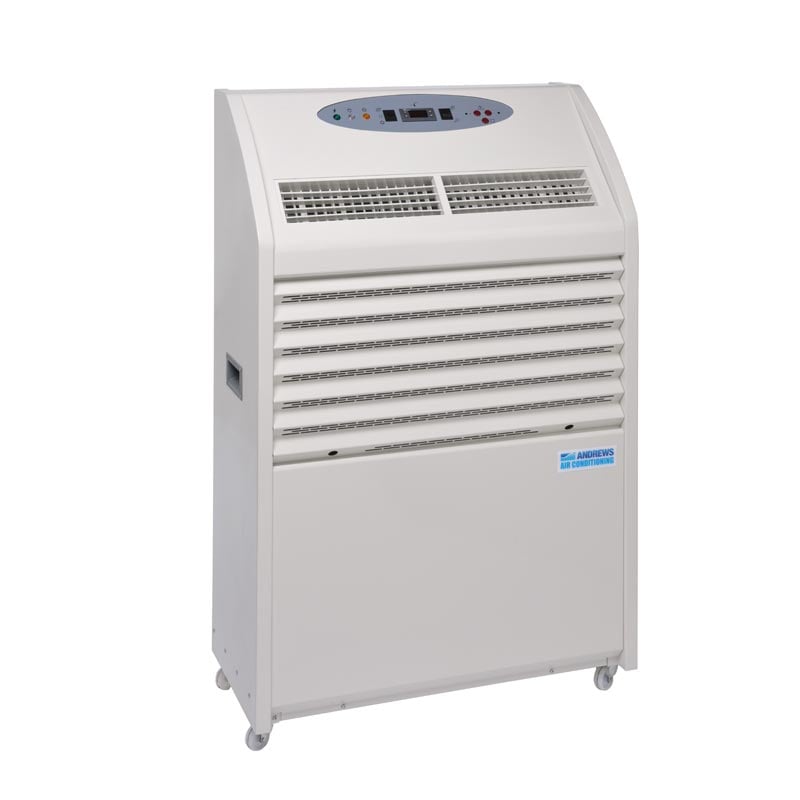

PAC 22 Series 3 portable air conditioner (6.5kW)
Click image to Zoom
Download Spec Sheet
The PAC 22 series 3 is the most capable mobile air conditioning unit and one of our larger and more powerful stylish water cooled 'Split' portable air conditioners. Essentially strong, compact and easy to install. The PAC 22 is made up of three components. The room unit contains a refrigeration circuit with water cooled condenser. The external unit is a simple water to air exchanger. These two components are connected by a length of flexible line containing flow and return cooling water pumped from the room unit to the heater exchanger. With the PAC 22 the smaller condenser unit can be placed up to 30 meters from the room unit.
Also available in 230V 1ph 60Hz
Key Features
- 30m lines for versatility of location
- Lower temperature capability - down to as low as 10C
- High capacity unit - 6.4kw from 13amp power supply
- 4dB(A) quieter than the series 2
- Easy to use digital display
- Improved water couplings for fast installation
- Innovative spigot plate for ducting to remote areas
- Three speed fan for high capacity air flows
Environments
- Large Offices or small open plan areas
- Storerooms
- Temporary accommodation
- Computer rooms
- Medium sized workshops
- Medium shops
- Small marquees
- Hotels
- Small Hospitality units
- Restaurants
- Archives
Specifications
- Typical cooled area
- 156m
Also available in 230V 1ph 60Hz - Power supply
- 230 V 13amp
- Indoor noise level (max)
- 59 dBA @ 3meters
- Outdoor noise level (max)
- 62 dBA @ 3 meters
- Indoor weight
- 122 kg
- Outdoor weight
- 20 kg
- Indoor dimensions
- 390 x 810 x 1282
- Outdoor dimensions
- 280 x 560 x 520
- PAC line length
- 5 meters
- Average power consumption
- 2,376 kW/hr
- Control
- Automatic thermostat
