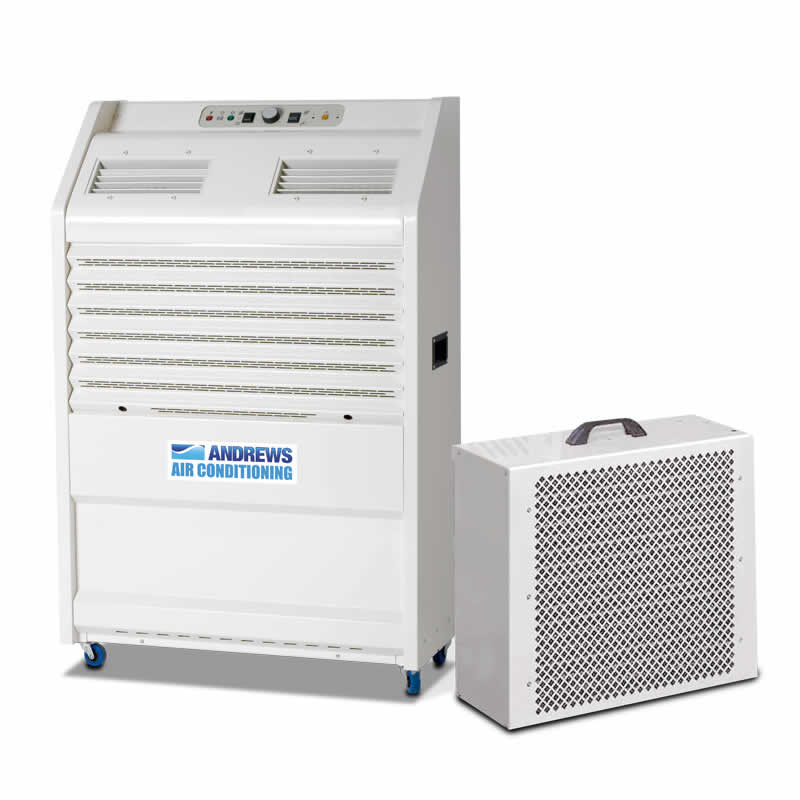

PAC 22 portable air conditioner (6.5kW)
Click image to Zoom
Download Spec Sheet
The PAC 22 is one of our larger and more powerful stylish water - cooled 'Split' portable air conditioners. Split means there are two parts to the system, the room unit and the external condenser unit, The two are connected by a length flexible line. With the PAC 22 the smaller condenser unit can be placed up to 30 meters from the room unit.
Key Features
- Safe and easy to use
- Fully automatic operation
- Runs on a standard domestic
- power supply
- Economical
- Very reliable
- Easy installation Plug in & switch on
- Quiet operation
- Fully portable
- Robust construction
Environments
- Large Offices or small open plan areas
- Storerooms
- Temporary accommodation
- Computer rooms
- Medium sized workshops
- Medium shops
- Small marquees
- Hotels
- Small Hospitality units
- Restaurants
- Archives
Specifications
- Typical cooled area
- 156 m
- Power supply
- 230 V 1 ph 50 Hz Run 11 A
- Indoor noise level (max)
- 65 dBA @ 3 metres
- Outdoor noise level (max)
- 62 dBA @ 2 metres
- Indoor weight
- 110 kg
- Indoor dimensions
- 820 x 390 x 1,245 mm
- Outdoor weight
- 8 kg
- Outdoor dimensions
- 285 x 565 x 520 mm
- PAC line length
- 5 metres
- Average power consumption
- 2.4 kW/hr
- Control
- Automatic thermostat
