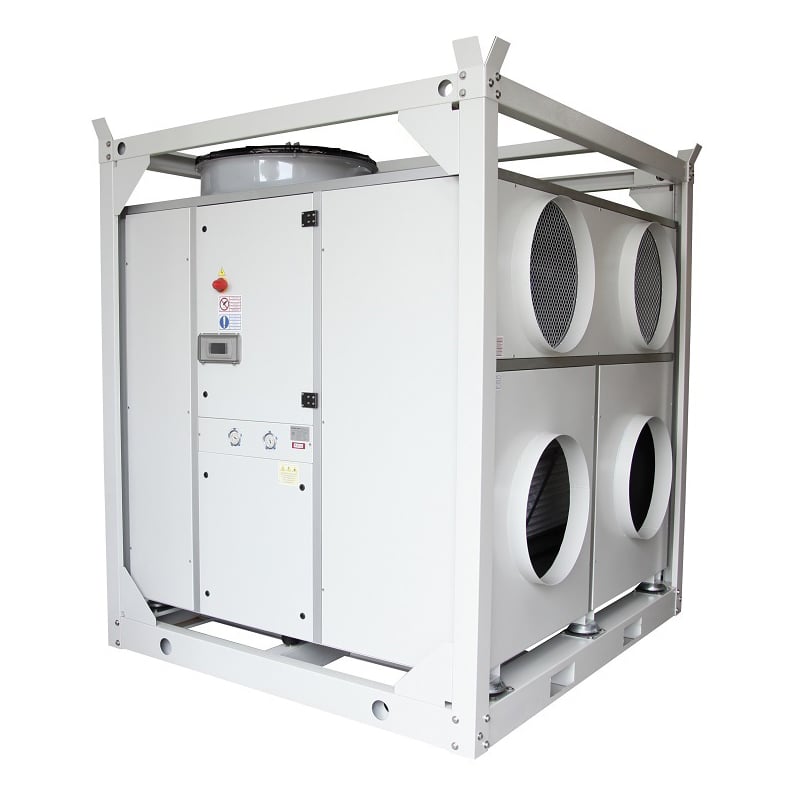

HPAC90 High Performance Air Conditioner (90kW)
The HPAC90 is our largest and highest capacity mobile Air Conditioning unit, with a nominal cooling and heating capacity (via Heat Pump function) of 90kw equivalent to several conventional units. It is ‘plug and play’ in that on arrival it requires only connection to suitable power supply and temporary ducting and is operational within minutes requiring no intervention or attention.
Click image to Zoom
Key Features
- Market leading technology
- 50m distribution length for versatility of location
- Very high capacity unit - 90kw from a 3-phase power supply
- Variable speed fan for high capacity air flows
- Most recent product to be added to the Andrews range
Environments
- Data rooms
- Storerooms
- Server rooms
- Temporary accommodation
- Large sized workshops
- Open plan areas
- Marquees
- TV / Film studios
- Hospitality units
- Film sets
Specifications
- Air flow (max)
- 15000 m³/h
- Noise level (max)
- 75.2 dBA @ 3 metres
- Power supply
- 415v 3 ph 84 amps
- Typical cooled area
- 2000 m³
- Dimension
- 2280 x 2030 x 2450 mm
- Plug type
- 125 amp 5 pin
- Average power consumption
- 48.4 kW
- Duct length (max)
- 50 metres
- Duct diameter size
- 600 mm
- Nominal cooling duty
- 90 kW
